At times I doubted if it was possible, but alas all of the parts for the chair have been laminated. After cleaning up the faces it was time to reduce the shape piece by piece. Once happy with how the framework was looking I was able to cut the joinery in the back rest and fit the seat.
Sorry for the iphone quality photo's, computer malfunctions also accompanied the process.
At this point in the bent plywood chair everything had been formed except for the seat. All of the other laminations had been done with cauls and clamps so I decided to forgo digging out the vacuum bag and clamp the seat panel as well. Pressed using 15 ply's of alternating grain maple veneer.
With the back legs / armrest and back of the chair pressed on the large original form it was time to sort out how to go about pressing the front legs. Faced with the same dilemma of trying to wrap veneer around the diameter of a pencil I looked for alternative ways to clamp around the curve from my original bends. The solution I came to was using a shim steel strap to create my clamping pressure around the outside of the tight radii.

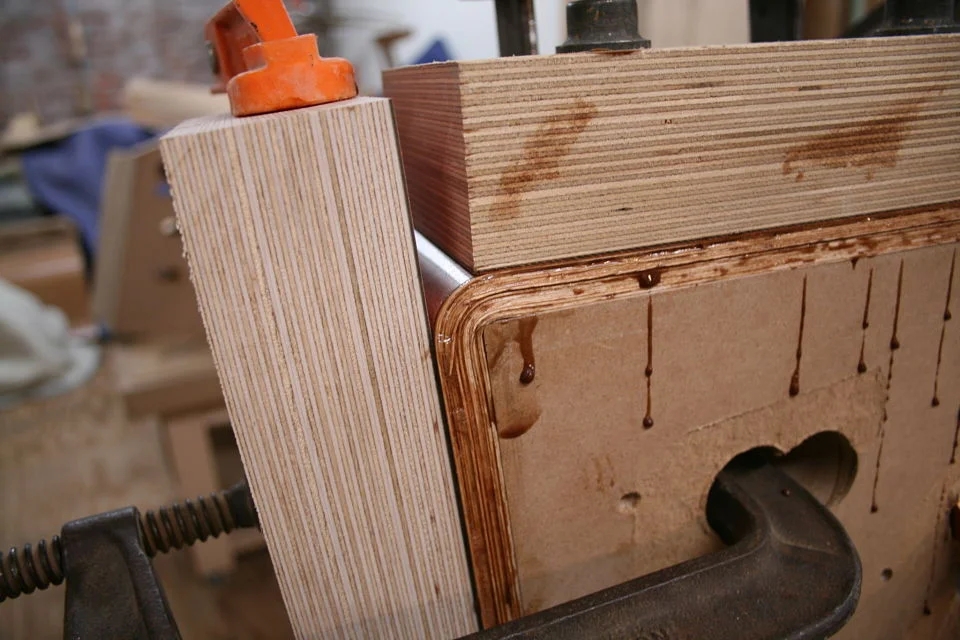

So as you can see above the shim steel strap is attached to my plywood clamping cauls. It wraps around the far end of the bordering cauls and into a bandsaw kerf which is then covered with a block to keep the strap from slipping.
The 21 layers of veneer were cut to shape, the inside three layers were hot pipe bent around the bar of an F-clamp to prebend the tightest radii.
So you can see in the pictures above the two clamps that are clamping down the length of the cauls on either side of the bend, these are tightened at the beginning of the glue up to pull the strap tight around the corners where the blocks don't cover the lamination.
Like most chairs it required a set of lefts and rights, so two forms with complimentary angles were needed. They turned out better than expected and I was amazed at how well the strap technique worked. On to the seat and then lots of clean up and shaping.
It's been close to year since I had to admit defeat with the Origami Chair. The time I had available to work on it had run out and there was a long list of previously designed commissioned work with fast approaching deadlines.
I am fortunate to have very understanding clients and Jed is no exception. So, after a long delay, we are back Origami Chair, and we have come to snatch victory from the jaws of defeat.
That big form from last year did get used. We did attempt to press the back legs, back rest and arm rest as one complete panel, it didn't work. Maybe it was the expansion / contraction from the moisture in my glue with alternating grain, maybe it was a lack of pressure in certain parts of my form, the point of the matter is it failed. Love your experiments, calm your brain, move forward.
Once back at the drawing board the decision was made to forgo the idea of a chair composed of just 2 panels (parts). A little bit of an adjustment to the original form and I was able to press the back legs, and arm rests separate from the larger back panel. Basically I would create what you see above in three pieces instead of just one.
These are the parts I managed to make last year before having to move on. There was still a glimmer of hope that this could all work out. What came next was maybe the biggest personal wood bending breakthrough I have experienced. Laminating with a strap.
Check out the latest issue of Fine Woodworking (March/April) for an article I wrote on soap flake finish. V.O.C. FREE wood finishes!
In September an old friend commissioned a piece that could be used to present his partner with an engagement ring. That was the only criteria we were given, below are some of the creations we came up with.
At the end of 2014 we finished up a commission for a custom valet chair. The customer was fond of our aesthetic and wanted to see what our take on Hans Wagner's iconic Valet Chair (1954) would be.
Hans Wagner - Valet Chair (1953)
As par the standard commissioning process we created 3 concepts for the client, what's below is the one he wanted to see become a reality. For those not familiar, the valet chair is intended to be a chair that accommodates getting dressed / undressed. The back of the chair (like many chairs) is to hang a suit jacket/blazer. What's unique from many chairs is the "clothes hanger" section is shaped to replicate ones shoulders, (higher end jackets often have horse hair pads in the shoulders, the shape of the shoulders helps to keep the shape of the jacket). This was the only real criteria from the client, he even provided a hanger to reference.
The seat on the chair hinges from the front edge providing a place to fold / hang trousers over as well as exposing a leather lined compartment for ties / belts / cuff links / wallet / phone / keys and anything else you may want to store.
This valet chair forced me to evaluate a different set of requirements within a familiar form. Yes, like all chairs this one needed to be strong, and have an appealing aesthetic. Where it differed is the emphasis on this chair was not in comfort (it did turn out very comfortable by coincidence), but instead in creating a chair that one could easily and intuitively get dressed / undressed using day in and day out.
Below are the original two valet chairs created in walnut, with leather details and custom fabricated brass hinges.
Here we are, its been awhile (8 months now), I've made promises in the past about posting regularly again, going to give it another shot. Those of you that keep checking in to see the same old, apologies, thanks for sticking around.
A lot has happened and there's even more on the horizon, we're going to mix up posts of new happenings and things from the past 8 months. For now, enjoy some pictures of our lovely studio in Red Hook, Brooklyn, and take a sneak peak at our latest completed commission, the valet chair.
Just finished up a set of Dining Chair No. 3's in walnut along with a set in white oak. Pictured below is the all walnut version as it leaves the studio.
Just a moment of reflection while I wait for some veneer to arrive for the "Origami Chair." I've had a lot of help along the way, thanks to everyone whose been a part of getting me to where I am, couldn't have done it without you folks. I only have pictures of a few of you, but this post is for all of you.
It has been quite the journey since proving the folded paper concept could work. I have gone through many, many sheets of particle board / mdf and more coffee than I care to admit. It has taken days to build, and days to refine and alter. This form could likely keep the building from flying away in case of a hurricane at this point. I am not entirely sure how I managed to sort it all out, but somewhere amongst the caffeine and sleepless nights (possibly related) I sorted through the angles, and the angles where angles meet angles.
The form is composed of 6 separate torsion boxes. Together they give me the angles I require, or at least I certainly hope so.
With the form "complete" I needed to devise a clamping strategy (no way this contraption was fitting in the vacuum bag). A clamping caul system was the only way I could conceive making it work, and so the adventure of making an elaborate set of clamping cauls began. 1.5" thick mdf formed the platens (compound angles meeting compound angles) that would sandwich the veneer with "sprung" beams running across them. Because I won't be able to get a clamp into the center of the panel and I don't own any 12" deep clamps I needed to "spring" the beams. Basically the beams are touching in the middle (peak of the triangle profile) of the platen and around an 1/8" high on each end where the clamping pressure will be applied. As the clamps get tightened they will close that 1/8" gap creating more pressure in the middle of the platen. Simple stuff really.
This is the first of two forms that will be used to make the chair. This one will be used to create a bent ply panel that will form the back rest, arm rests and back legs.
This past autumn I was commissioned to build a chair by a student in the Chair Design class I was co-teaching with Jeff Miller at the Center for Furniture Craftsmanship. During the brainstorming / model making / getting creative energy flowing exercise the student (Jed) came up with a captivating model by "simply" folding paper together into the form of a chair. I wish I had decent pictures of the model, but let me tell you, Jeff and I were both immediately drawn to this concept and the potential it had. After a day or two of head scratching our collective brain power was getting pretty mushy, Jed's chair was redesigned capturing some of the elegant lines the model had into a design Jeff, Jed and I were confident in Jed being able to build in just over a weeks time. By the end of the class Jed had created a striking, sit able chair, but he longed to see that original folded together model come to life. Jed commissioned me to make the original design, the endeavour took on a new life.
I knew I had gotten myself into a pretty hefty challenge, but let me tell you, I greatly underestimated what lay ahead. Fold some veneer here, fold some veneer there, voila, chair. I knew it was going to be labour intensive, but what I did not anticipate was the mathematician level of trigonometry / master origami problem that lay before me.
I started in my sketchbook (like always) and came up with a few reiterations of the chair I was content with and started trying to decipher just how to build one of them. After more head scratching I realized I was chasing the wrong concept altogether, and that in reality I wasn't pleased with any of the three concepts I was initially working on. I was trying to merge Jed's original model, his finished redesigned chair and something I thought would be comfortable into a pretty little package. I had ended up in a place with a chair that lacked a cohesive look and feel, I reached out to Jed wanting to discuss the project with him. Jed had no interest in seeing and adding input on the designs, he wanted me to find the right design for myself, to look past the hangups and let my voice be heard. It was a deflating and empowering moment all at once. I took a long walk, enjoyed some fresh air, and realized I needed to go back to the start. I got out the paper, and for what seemed like days folded together both model sized and full sized chairs. From here my current concept was born. I ended up straying a bit from the original model Jed had folded together back in September, but have found a direction I believe will lead to a very unified, refined looking piece.
The plan is to make the chair out of just two parts, seems easy enough right? The first part will be a bent panel that makes up the back rest, arm rests, and back legs of the chair. The second part will be a bent panel that makes up the front legs, seat, and another set of back legs. The two panels will then be joined (glued and bolted) up the back leg. Both panels will be pressed out of commercial veneer with alternating grain direction to essential be shop made plywood, this way it will be strong and stable. There will be relief cuts in the veneer to allow for the panels to split apart (top of the back rest and front of the seat) where the panels change the plane they are being bent on.
Pictured below are a few (of what seems like hundreds at this point) of my mockups. They are cut from paper, cardboard, and one version made out of plywood to get something rigid enough to take angles from and sit in to work through ergonomics.
I know it doesn't seem like much yet, but stay tuned, this will be a learning intensive journey for everyone involved.
IMG_6676_opt
I know it has been a long time between posts, the business and life side of all this took priority for a little while. Through January and February I was preparing for and exhibiting at the Toronto Interior Design show as well as relocating to Brooklyn, New York.
In this post is a picture from the show as well as the most recent piece produced, Rocking Chair No. 1. It is walnut construction with a steel subframe, the steel gives the piece the structure it requires to take the load of a person. The cool (and somewhat unexpected) thing about it is the chair has no noticeable flex from the cantilevered seat or back, but has a slight flex side to side. It allows the back and seat to move independently from one another as the sitter adjusts in the chair.
I will go back in the coming weeks to post the process of creating this chair as well as posting about a new chair commission I am in the midst of currently designing.
Thanks for following, hope you enjoy.
Recently finished up the walnut prototype of the counter height bar stool I began designing while co-teaching the chair design workshop with Jeff Miller at the Center for Furniture Craftsmanship this past October. The minimal structure and clean kinked lines was inspired by a students chair design. The miters joining up in the back of the stool to give the "birdsmouth" look came about as a bit of an accident, a pretty happy accident perhaps going back to my days sharing studio space with Brian Reid.
Already there are some changes I think I would make in the next reiteration. For one I think I would like to pull the foot of the back leg in a some, the stance is a little too extreme for my taste. A wise chair maker once told me, "every chair you ever build is a prototype, you will always see improvements you can make no matter how many of them you have made." With that said I would like to welcome the counter height bar stool no. 3 to the family and look forward to testing this one out and developing it as time goes on.
Dining Table No. 1 has arrived in its new home. I was enormously nervous while delivering this table, I was unsure of how stable the table would be but was very pleasantly surprised to find I could actually sit on the outer edge of the glass without the table so much as budging. Relief. The current piece of glass is from the clients old dining table, they plan on purchasing a longer piece of glass that may have some shape to it. I will professional photograph it once the real top has arrived.
The slats have all been fit on Dining Table No. 1. After having steamed and twisted the 66 white oak slats they had a lot of water stains on the slats. The water stains were on the slats when they came out of the steam box, I can't say for sure why but my hunch is I didn't have them spaced out enough and/or condensation was dripping down onto the slats throughout the steaming process. In most cases I wouldn't worry to much about it, just scrape and sand until clear. However the design called for the outside face of the slats to have a bandsawn texture, this meant I was going to have to find another way of removing the water stains.
Some internet searching led me to find an organic compound solution, oxalic acid, which is a poison found in rhubarb. I ended up in what I can only best describe as a mad laboratory studio in the east end of Toronto where I purchased a 100g of the powder. Mixed roughly 10 parts water to 1 part Oxalic Acid I began scrubbing away at the stains with a wire brush. The test proved semi successful, although the stains were mostly gone the colour in the wood went with it leaving a sort of washed out dirty bleached look. It was undesirable for the finish I was looking to attain and meant going back to the drawing board.
With no real explanation as to why I thought it would work I decided to try and steam the stains out (last resort). Armed with my second hand iron and a wet clean rag I began steaming the water stained spots. Much to my disbelief the stains were lifting right out of the wood and actually transferring onto the rag. Some of the darkest spots took a couple tries but in the end I was left with clean (and wrinkle free) slats. I prepped them for finish by using the wire brush in line with the bandsaw marks to clean the slats and sanded a small chamfer on the edges. Few coats of wipe-on-poly later and I couldn't be happier. As much as I had fun with my brief organic compound trial, I am thrilled that steam was the solution. Be it bending, twisting, fixing dents or removing water stains, steam is the trick.
This week I have spent a bit of time sketching Coffee Table No. 1 for a new client who is looking to commission the same table, just bigger, and rectangular. In order to work through the design in my own brain and determine pricing I needed to work out the piece in scale on paper. The top view and side view of the table are done to scale and are more for my benefit, the perspective drawing is to scale as best as my eye could accomplish and is more so there to give the client an idea of what the piece will look like. Drawing is something that always takes me a long time. There is a lot of layout and erasing that happens, a LOT of erasing. It is something that I am constantly improving at, for the sake of reference I have the perspective drawing from the original coffee table design that I sold a different client this time last year. Gives you a bit of insight into how my drawing abilities have progressed in even just this last year.
As my aesthetic develops into designing pieces using lots of parts to achieve an overall greater form I wonder if my time might be better spent learning how to design on a computer. At the end of the day I just enjoy drawing by hand, probably for the same reasons I enjoy making furniture by hand. Not to mention I think there is something kind of special nowadays about showing up to a clients home with a sketchbook and a pencil to show them concepts rather then a laptop.
With the white oak slats twisted into shape and drying it was time to layout exactly where each slat was going to attach to the frame and drill holes in the steel frame for where the fasteners would go. It took a few tries to get the spacing right with the dividers, a centreline was scribed and the holes were set with a punch and hammer. The steel base was clamped down to the bed and using a jig that held the drill parallel to the bed 198 holes were drilled through the 3/16" thick steel. 37.25" of lineal steel were drilled through over the course of two days. As the 66 wood slats got fit into place the same drill jig was used to drill out the wood slats for the fasteners.
A little while back we were twisting the 3/4" thick by 2" wide by 34" long white oak slats to make up Dining Table No 1. We were doing this with kiln dried wood, which typically speaking doesn't steam bend all that well, but given that the most extreme twists for the table are around 45 degrees we tested it out, and it seemed to work without any problems. After one long day and some 70 slats twisted and clamped to the metal base to dry we decided to "test the limits" with the few that remained in the steam box. The slats were steamed for roughly 2-3 hours at 200+ degrees fahrenheit, the results were pretty incredible, to watch the bending happen check out this video.
After a bit of a delay we're back on to the metal dining table with the twisted white oak slats. I know there have already been pictures of the twisted slats and a video of us "getting our twist on," but we're going to take a step back on this post. Below are pictures of the metal frame I had fabricated which will hold (frame) 66 twisted white oak slats. In order for the frame to properly hold the twisted wood slats it also requires the metal angle iron to twist from acute to obtuse back to acute, or vice-versa. This is also happening along a curve, two curves actually.
So, in order to ensure as much accuracy as possible (we're kind of out in space after all) I not only provided a full scale drawing but also made jigs/forms for my metal worker to fabricate the curved twisting angle iron. You can see the angle blocks change from acute to obtuse along the curve, he used these to clamp a strip of cold rolled steel along, and then butt a curved section up to it tacking it along the way. The result was fabricating curved angle iron that changes from acute to obtuse back to acute, or vice-versa.
There is also a twisted straight section where the angle iron changes from acute to obtuse down the length, no curves, these pieces will make up the triangular ends.
A lot of head scratching went on with this one, at this point I still had no idea just how the wood slats were going to get fit and attached to the frame. There was also the dilemma of not actually knowing if the piece would be sturdy enough to hold a large piece of glass, but its working in the world of unknown that keeps this exciting.
